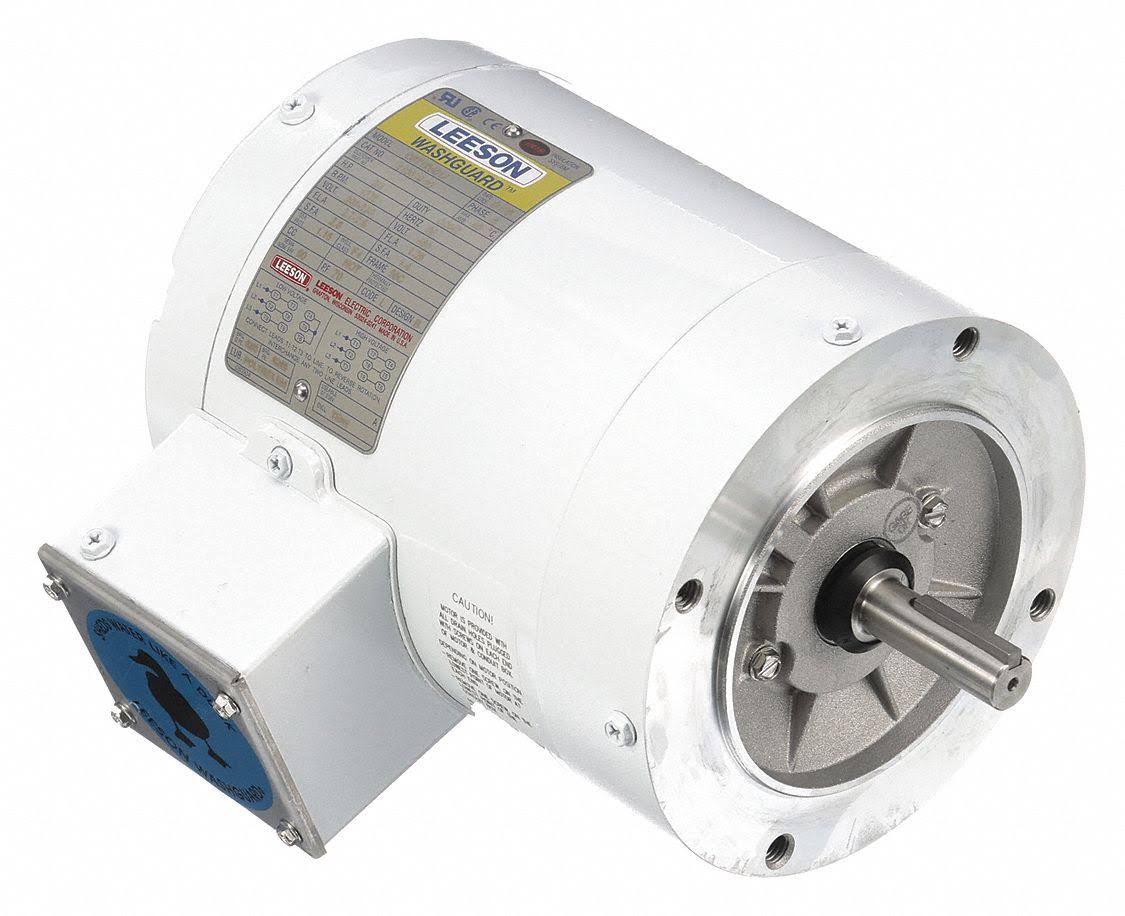

Leeson 3/4 HP Washdown Motor, 3-Phase, 1725 Nameplate RPM, 230/460 Voltage, Frame 56C 113019.00 DEIFG58_682

$652.63  $81.10




Product details:

Washdown Motor, 3-Phase, 3/4 HP, 1725 Nameplate RPM, Voltage 230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.5/1.3, 60 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CWSE Motor Shaft Rotation, Shaft Dia. 5/8 In, Shaft Length 1-15/16 In, Length Less Shaft 8-5/8 In, Motor Frame Material Rolled Steel, Nominal Efficiency 80.0 Percent, RPM Range 1701-1800
